Lightning Strike Counter Sky Counter

Alat Penghitung Sambaran Petir tanpa sumber listrik
Mampu menghitung sampai dengan 6 digit
Mudah cara pemasangannya

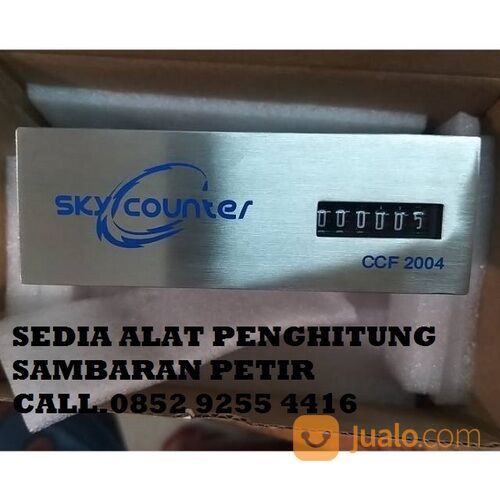

SKY COUNTER CCF2004
Developed by MHT, one of the renowned specialists in lightning protection, the SKY COUNTER CCF2004 is a dedicated counter for direct lightning strikes. The elegance of the device lies in its no frills simplicity, ease of installation and use.

Features :
* Weatherproof for outdoor applications
* No external power required
* Long service life
* High accuracy in direct lightning count
* Wide lightning current measuring range
* Easy to install through simple insertion of the down conductor through the device
* High compatibility with all types of lightning conductors and equipment
* Records surge or lightning event from trigger threshold 500A

Spesifikasi
Type : CCF 2004
Counting Current (rise time =8µs) : > 0.5 KA
Sequence of impulse : > 1s
Display Model : Electromechanical Analog display
Indicator : Lightning Event 0~999999
Current Sample Mode : Inductive Probe (Built-in)
Working mode : No batteNo battery needed
Operation temperature (ºC) : -20~+60
Dimension of window (mm) : 32
Dimension of counter (mm) : 150x78.5x34
Enclosure material : Stainless Steel
Degree of protection : IP67
