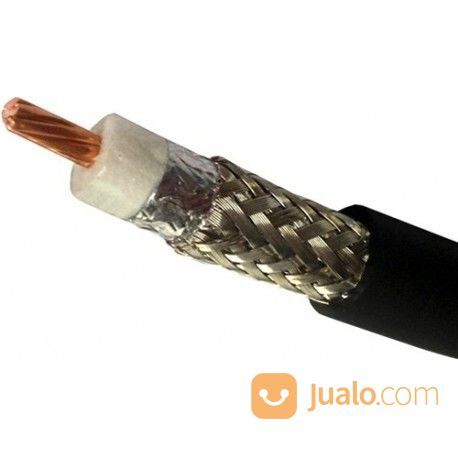

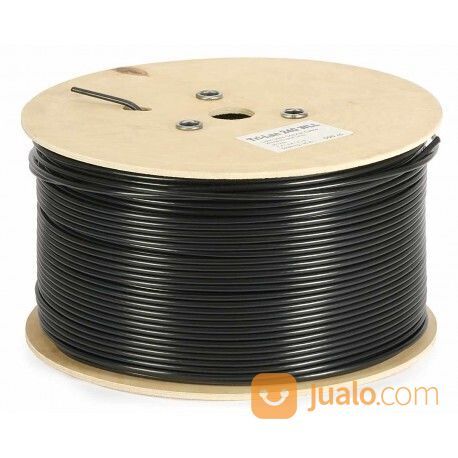

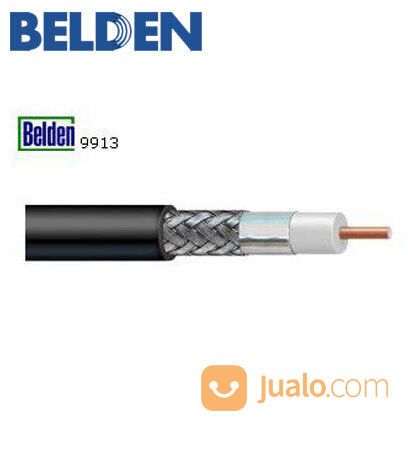

Kabel Belden RG8 9913 50 Ohm USA,10 AWG solid .108 konduktor tembaga telanjang, isolasi polietilen semi-padat, Duobond II, pelindung kepang tembaga kaleng (cakupan 90%), jaket PVC.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Low Loss RG-8 50 Ohm Wireless & Antenna
Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
10 Solid BC Bare Copper 0.108 in 1
Conductor Count: 1
Conductor Size: 10 AWG
Insulation
Material Nominal Diameter
Semi-Solid PE Semi-Solid Polyethylene 0.286 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil 100 %
Braid 2 TC Tinned Copper 90 %
Outer Jacket Material
Material Nominal Diameter
PVC Polyvinyl Chloride 0.405 in
Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
0.9 Ohm/1000ft 1.8 Ohm/1000ft 1.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
24.6 pF/ft
Inductance
Nominal Inductance
0.059 H/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
5 MHz 0.4 dB/100ft
10 MHz 0.5 dB/100ft
50 MHz 1 dB/100ft
100 MHz 1.4 dB/100ft
200 MHz 1.8 dB/100ft
400 MHz 2.6 dB/100ft
700 MHz 3.6 dB/100ft
900 MHz 4.1 dB/100ft
1000 MHz 4.4 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 84 %
Power Rating
Frequency [MHz] Max. Power Rating [W]
5 MHz 4,021 W
10 MHz 3,217 W
50 MHz 1,609 W
100 MHz 1,149 W
200 MHz 894 W
400 MHz 619 W
700 MHz 447 W
900 MHz 393 W
1,000 MHz 366 W
Voltage
Non-UL Voltage Rating
600 V RMS
Temperature Range
