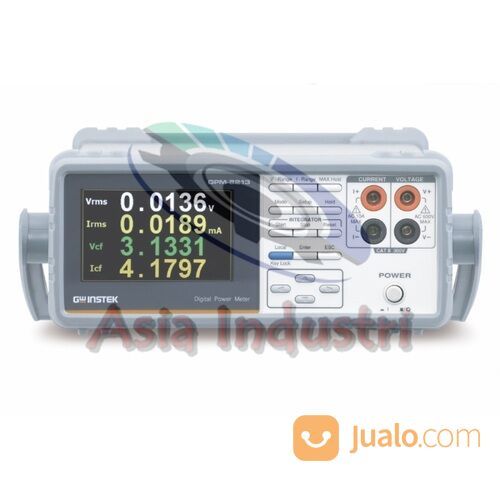

GW Instek GPM-8213 Digital Power Meter
============================================================

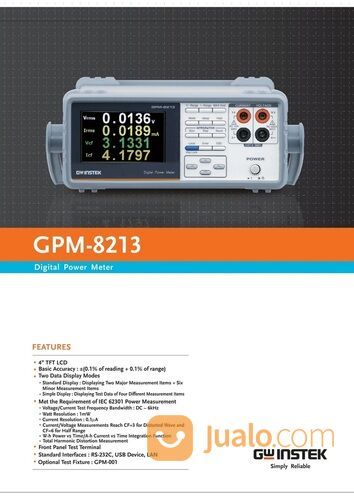

Features
• 4” TFT LCD
• Two data display modes
• Standard : two major measurement items + six secondary measurement items
• Simple : displaying test data of four different measurement items
• Listed as an accepted device for SPEC Power® testing
• Met the requirement of IEC 62301 power measurement
• Voltage/ current test frequency bandwidth : DC~6kHz
• Watt resolution : 1mW
• Lowest current range : 5mA, resolution : 0.1uA
• Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
• W-h (power vs time)/A-h (current vs time) integration function
• Total harmonic distortion measurement
• Front panel test terminal

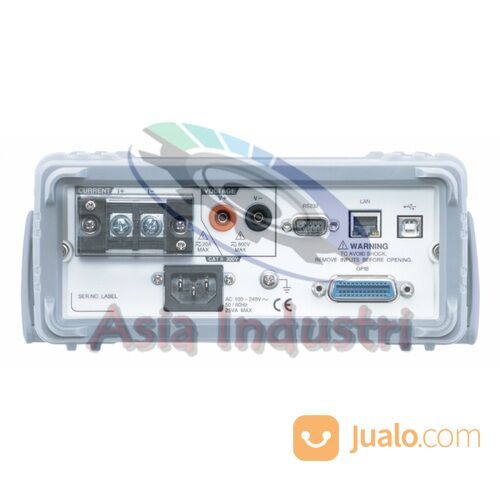

• Standard interface : RS-232C, USB device, LAN
============================================================

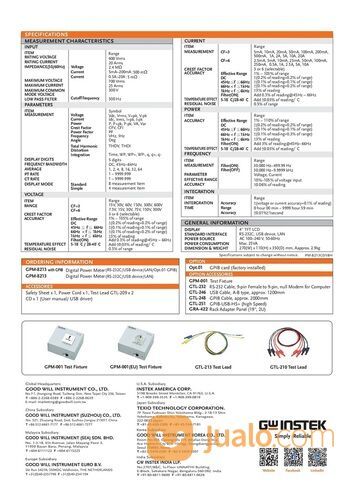

Specifications
INPUT
-Voltage : 600V rms
-Current : 20A rms
-Impedance (50/60Hz) : Voltage : 2.4MΩ; Current : 5mA – 200mA : 500mΩ; 0.5A – 20A : 5mΩ
-Max. Voltage : 700V rms
-Max. Current : 25A rms
-Max. Common Mode Voltage : 300V
VOLTAGE
-CF=3 : 15V, 30V, 60V, 150V, 300V, 600V
-CF=6 : 7.5V, 15V, 30V, 75V, 150V, 300V
-Accuracy : ±(0.2% of reading+0.2% of range)
CURRENT
-CF=3 : 5mA, 10mA, 20mA, 50mA, 100mA, 200mA, 500mA, 1A, 2A, 5A, 10A, 20A
-CF=6 : 2.5mA, 5mA, 10mA, 25mA, 50mA, 100mA, 250mA, 0.5A, 1A, 2.5A, 5A, 10A
-Accuracy : ±(0.2% of reading+0.2% of range)
FREQUENCY
-Filter (ON) : 30.000Hz – 499.99Hz
-Filter (OFF) : 30.000Hz – 9.9999kHz
-Accuracy : ±0.06% of reading
DISPLAY : 4” TFT LCD
INTERFACE : RS-232C, USB device, LAN
POWER SOURCE : AC 100-240V, 50-60Hz, Max. 25VA
DIMENSIONS & WEIGHT : 270(W) x 110(H) x 350(D) mm, Approx. 2.9kg

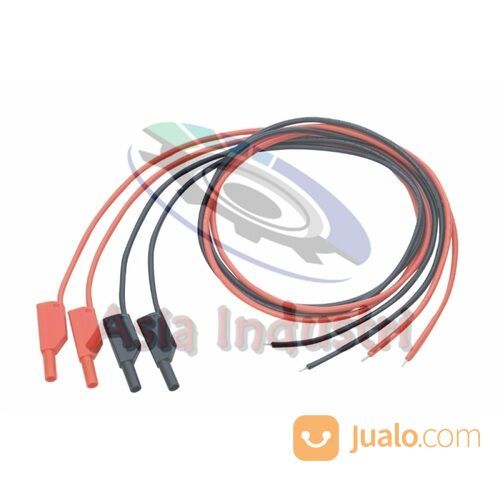

ACCESSORIES : Safety Sheet x 1, Power Cord x 1, Test Lead GTL-209 x 2, CD x 1 (User manual/ USB driver)
===========================================================
