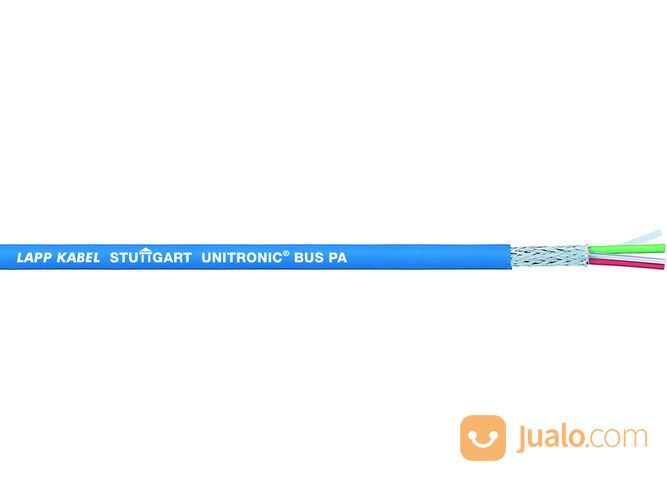

UNITRONIC® Profibus PA Cable, 1x2x1.3, LAPP Kabel PN 2170234

Profibus PA Cable

Product Description          : UNITRONIC® BUS PA

Ukuran / Size                       : 1x2x1,3 MM2

Warna / Color                     : Blue or Black

Merk / Brand                       : LAPP Kabel

Part Number                       : 2170234

Benefits

- FC (Fast Connect) version is oil and UV resistant




Application range

- Process-automation application for connecting sensors and actuators

– including areas with risks of explosion.

- Fixed installation

Product features

- Bit rate = 31.25 kbit/s. Transmission technology RS485 also possible but bit rate is limited to 1.5 Mbit/s

- Maximum cable length is dependent on several factors (e.g. supply voltage, current demand).

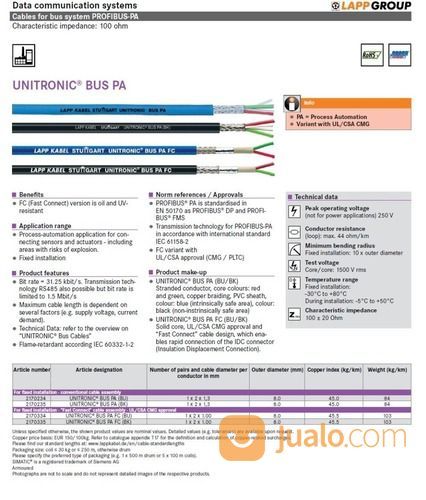

- Technical Data: refer to the overview on

Product make-up

- UNITRONIC® BUS PA (BU/BK)Stranded conductor, core colours: red and green, copper braiding, PVC sheath, colour: blue (intrinsically safe area), colour: black (non-instrinsically safe area)

– UNITRONIC® BUS PA FC (BU/BK)Solid core, UL/CSA CMG approval and “Fast Connect” cable design, which enables rapid connection of the IDC connector (Insulation Displacement Connection).
