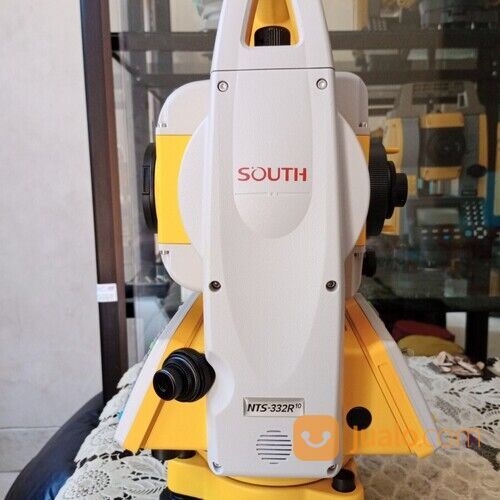

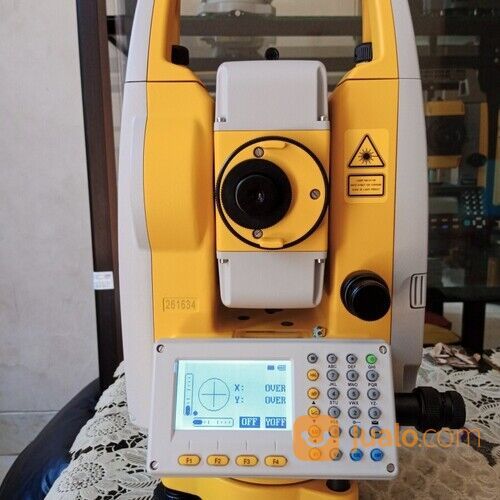

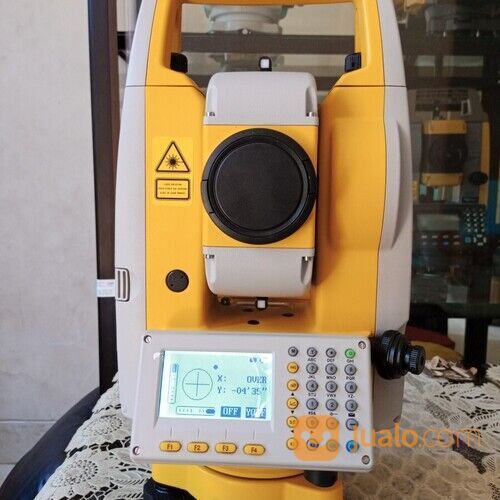

TOTAL STATION SOUTH NTS-332R10

● 2” Angle Accuracy

● Upgraded EDM with 1000m non-prism range

● Simple but practical onboard software

● Easy-to-read LCD screen

● Easy connectivity by USB and Bluetooth



Paket Pembelian :
- 1 Unit NTS-332R10
- 2 Unit Alumunium Tripod
- 1 Unit Prisma Polygon
- 1 Unit Pole / Stik / Tongkat
- 1 Unit Prisma Pole
- 1 Unit Battery charger
- 1 Unit Power Cable
- 1 Unit Cabel Data
- 1 Unit Carrying strap
- 1 Unit Software
- 1 Unit Hardcase
- Sertifikat Kalibrasi + Garansi Resmi 1Tahun

Specification
Distance Measurement Reflectorless 1000m
Single Prism 5000m
Accuracy: Non Prism 3+2ppm
Accuracy: Prism 2+2ppm
Sheet 3+2ppm
Measurement Time 1.2s in fine
0.2s in tracking
Atmospheric Correction Manual input, Auto correction
Prism Constant Manual input, Auto correction
Temperature Correction Manual input, Auto correction
Distance Reading Max: 99999999.999 Min: 1mm
Angle Measurement Accuracy 2"
Method Absolute, continuous
Disk Diameter 79mm
Detection Method V: Dual, H: Dual
Angle Reading Min: 1"
Telescope Image Erect
Tube Length 152mm
Effective Aperture 45mm (EDM 47mm)
Magnification 30x
Field Of View 1°30'
Resolving Power 3"
Minimum Focus Distance 1.5m
Muitiple/Additive Constant 100/0
Keyboard And Display Keyboard Alphanumeric 28 Keys
Display 2.7 inches Black & White LCD
Resolution 160*96 dpi
Position Face 1, Face 2
Operation System Operation System None
Processor None
Memory 16000 points
Interface WIFI None
Bluetooth None
SD Card None
Serial Port None
Mini USB None
Mirco USB Yes
USB Flash Disk None
SIM Card None
Compensator System Liquid, Dual axis
Working Range ±6'
Accuracy 1"
Plummet Laser Plummet (Default)
Accuracy ±1.5mm @1.5m
Laser Brightness 5 levels adjustable
Wavelength 635nm
Laser Class Class 2
Laser Power 0.5mW
Optical Plummet (Optional)
Image Erect
Magnification 3x
Focusing Range 0.5m ~ ∞
Field Of View 5"
Accuracy -
Battery Type Lithium
Voltage 7.4V
Operating time 8 hours
Vial Plate Vial 30" /2mm
Circular Vial 8' /2mm
General IP Rate IP54
Temperature Range -20°C -- +50°C
Dimension 206*200*353mm
Weight 6.0kg
Others -
Others -
Others -
