Long distance communication made simple

Simplified operation

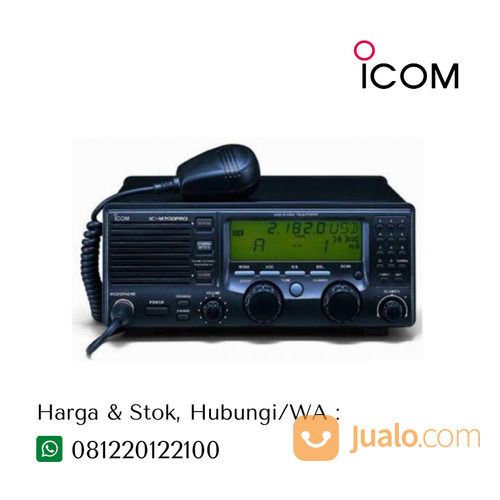

The IC-M700PRO is easy to use whether you are new to SSB or an expert. Channel selection is quick and easy to access with large, independent GROUP and CHANNEL knobs. Each panel button has only 1 function. The large, easy to read display shows channel (or frequency) and operating status at a glance. A new green LCD is easy to see in sunlight, but not too bright for night operations.

Powerful output extends your communications reach

The powerful 150 W* (PEP) transmitter provides long distance communication you can rely on. To make sure that power is always available to you—even during demanding RTTY (radio teletype) or E-mail operation—a large cooling fan combined with the ICM700PRO’s aluminum chassis keep the radio cool. * 60 W (PEP) above the 24 MHz bands.

Scanning functions

Locate desired signals quickly with a powerful memory scan feature.

Additional Features

Automatic antenna tuner, the AT-140, is available to match the transceiver to your antenna
Numerous operating modes* available: USB, AM, CW, FSK and AFSK
*Ask your dealer for details.
Wide band, general coverage receive — 0.5 to 29.9999 MHz
Channel/frequency knob allows the user to tune specific frequencies around the memory channel
NMEA plus 2 DIN connectors are available for external equipment connection, such as a linear amplifier, FSK terminal, E-mail modem, etc.
Optional 2-tone alarm function (UT-95 2-TONE ALARM UNIT required) provides simple transmission of emergency signals
NMEA0813 interface included
Specifications

General
Frequency coverage
Rx

Tx


0.5 – 29.9999 MHz

1.6 – 2.9999 MHz

4.0 – 4.9999 MHz

6.0 – 6.9999 MHz

8.0 – 8.9999 MHz

12.0 – 13.9999 MHz

16.0 – 17.9999 MHz

18.0 – 19.9999 MHz

22.0 – 22.9999 MHz

25.- 27.5000 MHz

Mode USB, AM, CW, FSK and AFSK
Number of channels 150 (max.; 3 groups of 50 channels each)
Antenna impedance SO-239 (50Ω)
Power supply requirement 13.6 V DC ±15%
Current drain
(at 13.6 V DC)

Tx max. power 30 A typ
Rx max. audio output 2.5 A
Operating temperature


Guaranteed range

-30°C to +60°C
-22°F to +140°F

-20°C to +60°C

-4°F to +140°F)

Frequency stability ±10 Hz (0.5-14.9999 MHz)
±20 Hz (15-29.9999 MHz)

Dimensions
(projections not included)

291.4(W) × 116.4(H) × 315(D) mm
1115/32(W) × 419/32(H) × 1213/32(D) in

Weight 7.9 kg; 17 lb 7 oz
Remote connector NMEA D-sub 9-pin (female)
ACC 1 connector DIN 8-pin (female)
ACC 2 connector DIN 7-pin (female)
Transmitter
Output power 150 W PEP (below 24 MHz)
60 W PEP (above 24 MHz)

Spurious emissions -75 dB typical
Unwanted sideband 70 dB typical
Carrier suppression 65 dB typ.
Microphone impedance 8-pin connector (600 Ω)
Receiver
Sensitivity
USB, CW, FSK, AFSK

(for 12 dB SINAD)



AM *AM

(for 10dB S/N)

6.3µV (0.5-1.5999 MHz)
1 µV (1.6-1.7999 MHz)

0.35 µV typical( 1.8-29.9999 MHz)

32 µV (0.5-1.5999 MHz)

6.3 µV (1.6-1.7999 MHz)

2.2 µV typical (1.8-29.9999 MHz)

Spurious response rejection ratio 80dB typ. (1.6 – 29.9999MHz)
Audio output power
(at 13.8 V DC)

5 W typ. at 10% distortion with a 4 Ω load
Clarity variable range ±150Hz
External speaker jack 2-conductor 6.5 (d) mm (1⁄4″)/4-8 Ω
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

Hand microphone
DC power cable
ACC plugs
Mounting bracket kits
Microphone hanger
Speaker plug
Spare fuses
