Jual Self Propelled Articulated Booms, Jual Work Platform, Jual Aerial Work Platform - AB Series self-propelled articulated booms menyediakan pengguna dengan fungsi operasi multi-angle dan multi-faceted, desain boomnya yang unik dapat mendekati beberapa ruang hambatan untuk pengoperasian, kemampuan self-propelled yang sangat baik, chassis yang mampu berputar hingga 360 derajat serta berayun ke atas dan ke bawah, fungsi platform membuat pekerjaan lebih mudah. DINGLI Series GTBZ -propelled articulated booms dapat mencapai ketinggian kerja 26m.

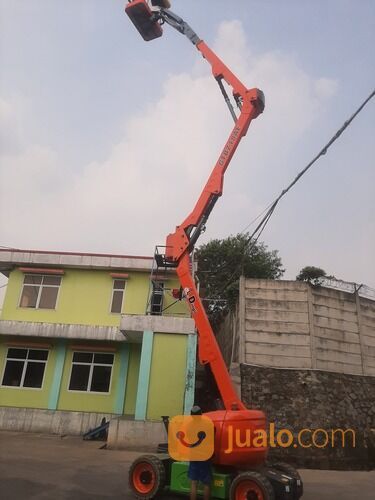

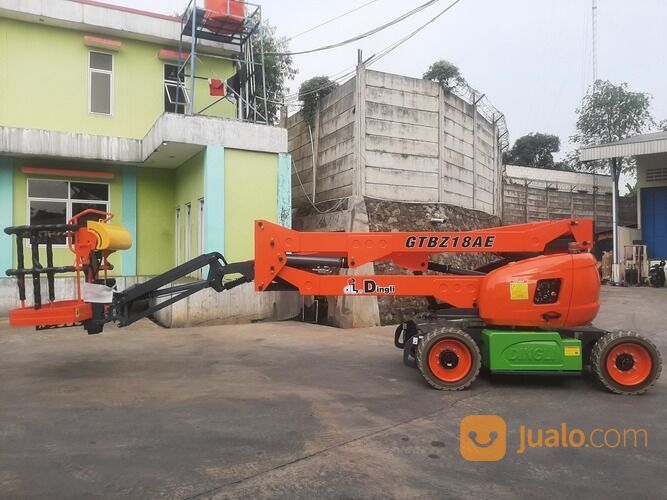

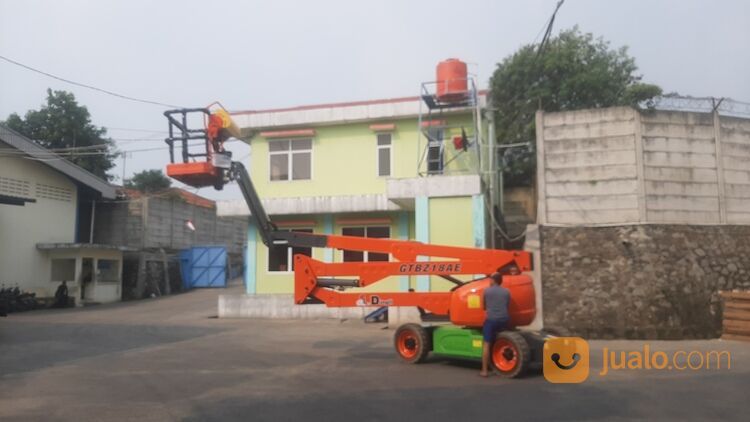

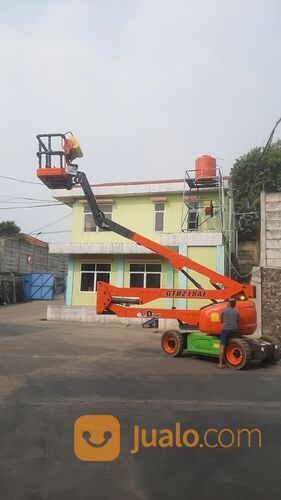

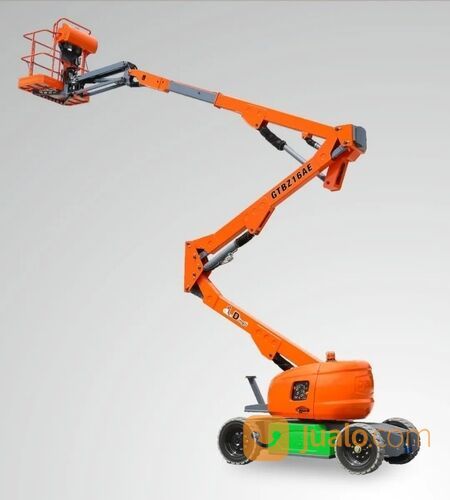

Articulating Boom Lift 18 Meter
Spesifikasi

Platform Height : 16 m
Working Height : 18 m
Platform Capacity : 230 kg

Lift Capacity Max : 230Kg
Working Height Max : 18.00m
Working Platform Height Max : 16.00m
Working Platform Outreach Max : 6.60m
Across Height Max : 6.0m
Turntable Rotation : 360 Discrete
Drive Speed, Stowed : 3.7 Km/h
Drive Seed, Extended : 1.0 Km/h
Platform Rotation : 180°
Boom Swing : 0/140°
Platform Size A*B*H : 1.5m x 1.76m x 1.1
Leveling Platform : Hydraulic Level
Drive Wheels Number : 2
Steering Wheels Numbers : 2
Drive : DC 48V
System Voltage : DC 12
Tire Size : 33*12-20
Turning Radiur (Outside) : 3.38m
Turning Radiur (Inside) : 2.3m
Turntable Tailswing : 0
Maximum Lateral Foerce : 400N
Tilt Angle Max: 3º
Wind Speed Allowed Masx: 12.5m/s
Gradeability : 30%
Height-Stowed (C): 2.00m
Length-Stowed (E) : 5.20m/6.20m
Width-Stowed (D): 1.75m
Wheelbase (F): 2.00m
Ground Clearance (G): 0.14m
Hydraulic Tank Capacity: 35/50L
Total Weight: 5.6T/5.8T
Warranty : 1 Year
