Spesifikasi

* CPU : Next Generation Realtek Chipset 1186DD 750MHZ

* RAM : 512MB DDR4

* Flash : 2GB Nand Flash

* OS : Linux & Android

* USB : USB 2.0 ( 2 Port )

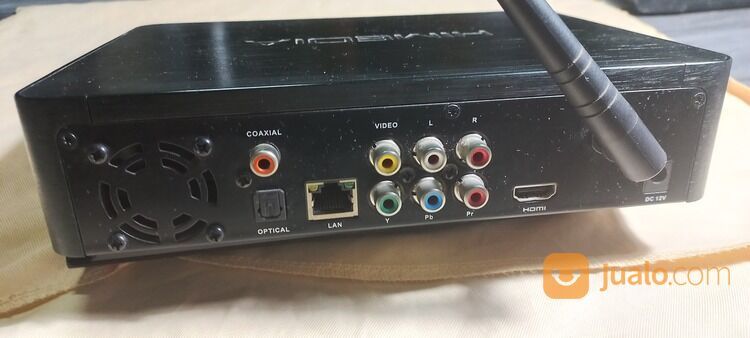

* AV output : Composite, HDMI 1.4, L/R Stereo, Optical SPDIF, Coaxial SPDIF

* Card Reader : MMC /SD 2in1 card Reader

* Remote control : 28 Key remote controller

* MCU : MCU power on/of by remote controller



* DVD menu navigation is supported

* Sources : ISO images, Video_TS



* Sources : USB mass storage devices (USB HDD, USB flash memory)

* Containers:

-MPEG (MPEG_TS, MPEG-PS, VOB, and M2TS)(typical file extensions : MPG, .TS, .M2TS,.TP, .VOB)

-RM/RMVB (typical file extensions : .RM, .RMVB)

-DVD-ISO, VIDEO_TS (DVD-VIDEO playback, including DVD menu support)

BD-ISO, BDMV (BD-Video Playback, Including BD simple menu support)

-Raw Video

-Raw audio (typical file extensions : WAV, .MP3)



*Audio codecs : MPEG1 layer 1/2/3, MPEG-2 LC-AAC, MPEG-4 LC-AAC, AC3, DTS, DTS-HDMA/DTS-HDHR, TRUEHD (pass-through), Blue ray LPCM, WMA, RA1/RA-cook/RA-lossless, OGG/APE/ALAC



* Support HDD External, USB Flash disk, USB Card Reader

* Video Support : RM/RMVB, H.264, VC1, WMV, MPEG 1/2/4, DIVX, XVID, BDMV, BD-ISO, MKV, TS, M2TS, MTS, FLV, AVI, DVD-ISO, VOB, MPG, DAT, ASF, TP, TRP, SWF, 3D-SBS, VCD, DVD, AVCHD, MINIBD, RBD, BD-3D, 3D BD-ISO, FRAME PACKED 3D



* Audio Format Support : FLAC, APE, LC-AAC, HE-AAC, MP3, OGG, WMA, WAV, AC3, DTS, DTS-HD MA, TRUEHD, CD

* Picture Formats Supported : JPG, HD JPEG, TIFF, PNG, BMP, GIF

* Subtitle Format Supported : SRT, SUB, IDX+SUB, SSA, SMI



*Embedded subtitle formats:

-In MKV : plain text ,SSA/ASS



*External subtitle formats: SRT, SSA/ASS, SMI, IDX+SUB,



Extended set of supported video model

*HDMI: 480i, 480P (60Hz), 576i, 576P (50Hz), 720P (60HZ), 1080i (60Hz), 1080P (24Hz, 50HZ, 60Hz)



* Composite : Pal, NTSC



* Power : 12V DC, 2A

* Dimension 148mm x 96mm x 23.8mm



* Packag0e Content :

- HD910B machine

- remote

- Power adaptor 100 - 240V
