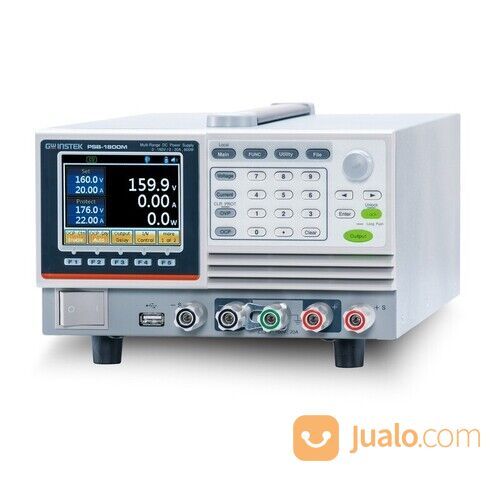

GW Instek PSB-1800M 160V/20A/800W Programmable Multi-Range D.C. Power Supply
============================================================
Features
• LCD display and menu-typed functionality selection

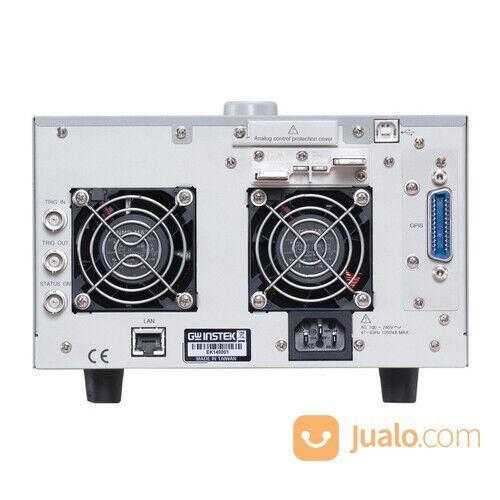

• Support front panel output terminals (Max.30A) and rear panel output terminals (Rating current output)
• Bleeder circuit control
• I/V Control function
• Sequence function
• Power on Configuration
• Internal Sense Control( Disable/ front panel/ rear panel)
• Voltage trigger function
• Output delay function
• OCP Control function
• Interface: USB Host
============================================================
Specifications
OUTPUT RATING
-Voltage : 160V
-Current : 20A
-Power : 800W
REGULATION (CV)
-Load : 85mV
-Line : 83mV
REGULATION (CC)
-Load : 25mA
-Line : 25mA
RIPPLE AND NOISE (Noise Bandwidth 20MHz; Ripple Bandwidth = 1MHz)
-CV p-p : 80
-CV rms : 15
-CC rms : 40
PROGRAMMING & MEASUREMENT ACCURACY
-Voltage : 50mV
-Current : 20mA
RESPONSE TIME
-Raise Time : 100ms
-Fall Time (Full load) : 150ms
-Fall Time (No load) : 1200ms
-Load Transient Recover Time (Load change from 50-100%) : 1ms
PROGRAMMING & MEASUREMENT RESOLUTION
-Voltage : 3mV
-Current : 1mA
SERIES & PARALLEL CAPABILITY
-Parallel Operation : Up to 4 units including the master unit
-Series Operation : Up to 2 units including the master unit
INTERFACE : USB, LAN
POWER SOURCE : 100VAC to 240VAC, 50Hz to 60Hz, single phase
DIMENSIONS & WEIGHT : 214(W) x 124(H) x 350(D)mm, Approx. 6.8kg
ACCESSORIES : CD ROM (User & Programming Manual) x 1, Power cord for UL/CSA or PSE (Region Dependent), Output terminal cover, Type A-B USB cable, Analog connector plug set, Chassis connection wire
===========================================================
