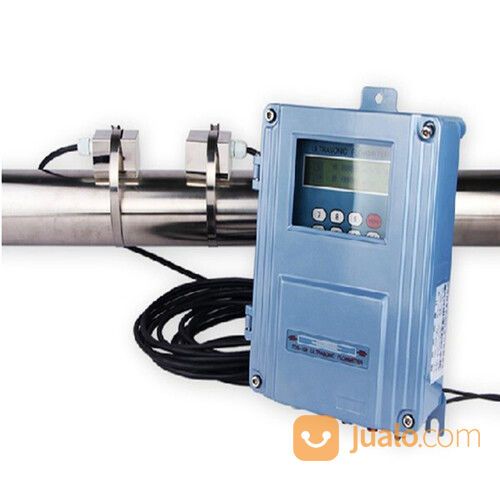

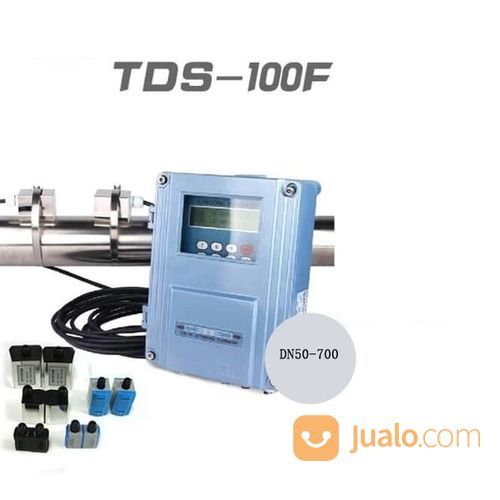

Deskripsi Fixed ultrasonic flow meter TDS-100F with M2 (DN50-700mm) wall-mount
Fixed ultrasonic flow meter TDS-100F-M2 (DN50-700mm) wall-mount flowmeter

Feature
The Teren-TDS-100F Wall-Mount Clamp on ultrasonic flowmeter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe.It utilized state-of-the art technologies pm ultrasonic transmission/receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting techniques allow the system to optimally adapt to different pipe materials automatically.
The flowmeters of the Teren-TDS-100F is carefully designed so that their operation is simple and easy. The unique clamp-on fixture design makes the installation very simple and no special skills or tools are required.
Due to the non-intrusive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leaks, no risk of contamination, no risk of corrosion, no pressure dependency.

Specifications
Repeatability Better than 0.2%
Accuracy Better than ±1% for flow velocity above 0.6ft/s
Flow Velocity 0~ ±32m/s
Display LCD with backlight 2*20letters
Display instantaneous flow rate, accumulated flow rate(positive, negative and net rates),velocity, time, analog inputs,etc.
Measuring Period 500m/s ( twice /s)
Signal Outputs Current output: 4-20mA or 0-20mA. Impedance 0-1k. Accuracy 0.1%
OCT output: pulse signal for accumulated flow rate(positive, negative and net rates); frequency signal for instantaneous flow rate(0~9999Hz selectable) Relay: able to output 20 signals, such as no signal,revers flow, etc.
Signal Inputs 5 channel analog signal inputs
(for signals such as temperature, pressure, liquid level,etc.)
Pipe Material
All metals, most plastics, fiber glass, etc. Allow pipe liner
