Deskripsi

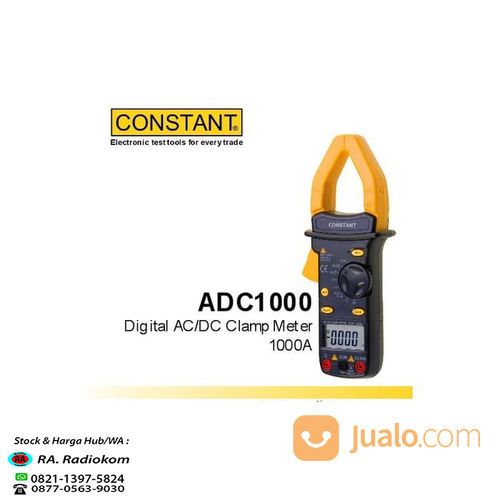

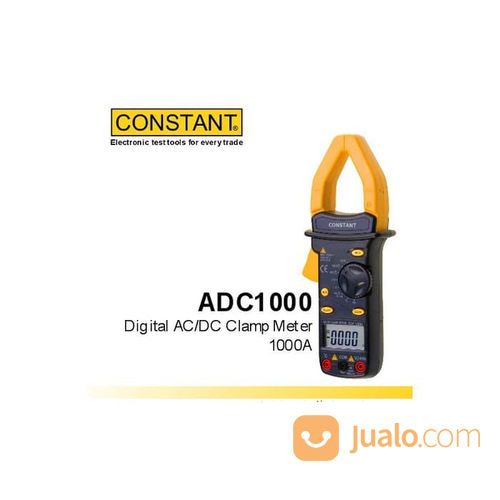

CONSTANT ADC1000 Digital AC/DC Clamp Meter
Features
* Auto zero key for DC Current measurement
* DC Current direction sign
* 42 mm jaw opening
* DMM function
* Low battery indication
* ”OL” for over range indication
Specifications
AC Current : 400/1000A
AC Voltage : 4/40/400V; 700V
DC Current : 400/1000A
DC Voltage : 0.4/4/40/400V; 1000V
Input Impedance : 10MΩ (AC and DC Voltage)
Resistance : 400/4k/40k/400k/4MΩ; 40MΩ
Capacitance : 4n/40n/400n/4µ/40µF
Temperature : -40°C ~ 0°C; 0°C ~ 400°C; 400°C ~ 750°C
Frequency : 40/400/4k/40k/100kHz
Duty Cycle : 0.1% - 99.9%
Diode : Read approximately forward voltage drop of the diode.
Continuity : If continuity exists ≤ 30Ω, built in buzzer will sound.
Display : 3999 counts
Battery : 9V
Size / Weight : 250 x 99 x 43mm / Approx. 480g
Standard Accessories : Test Leads, “K” Type Bead Thermocouple, Hard Case, Battery, Manual
Features
* Auto zero key for DC Current measurement
* DC Current direction sign
* 42 mm jaw opening
* DMM function
* Low battery indication
* ”OL” for over range indication
Specifications
AC Current : 400/1000A
AC Voltage : 4/40/400V; 700V
DC Current : 400/1000A
DC Voltage : 0.4/4/40/400V; 1000V
Input Impedance : 10MΩ (AC and DC Voltage)
Resistance : 400/4k/40k/400k/4MΩ; 40MΩ
Capacitance : 4n/40n/400n/4µ/40µF
Temperature : -40°C ~ 0°C; 0°C ~ 400°C; 400°C ~ 750°C
Frequency : 40/400/4k/40k/100kHz
Duty Cycle : 0.1% - 99.9%
Diode : Read approximately forward voltage drop of the diode.
Continuity : If continuity exists ≤ 30Ω, built in buzzer will sound.
Display : 3999 counts
Battery : 9V
Size / Weight : 250 x 99 x 43mm / Approx. 480g
Standard Accessories : Test Leads, “K” Type Bead Thermocouple, Hard Case, Battery, Manual
Constant ADC1000 Digital AC/DC Clamp Meter 1000A
Rp 2.150.000
Kota Tangerang, Banten
Kondisi
Baru
Diperbaharui
Lebih dari 3 tahun
Dilihat
31 kali
