ebar Locator Profometer PM-600
category: Non destructive testing / Rebar Locator
brand: Proceq
item: Profometer PM-600

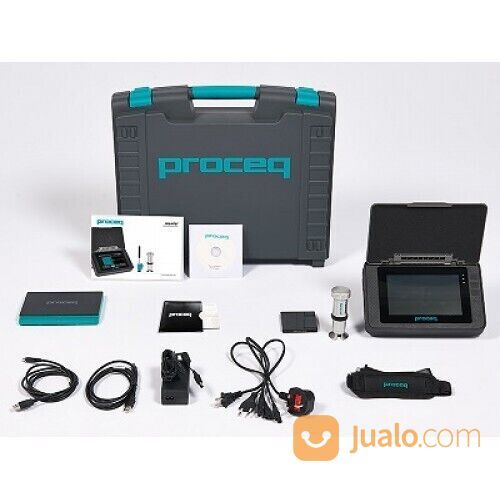

Profometer PM-600 Concrete Scan Cover Meter

The Profometer PM-600 advanced cover meter is a sophisticated instrument extending the application range of the Profometer PM-600 with the Line and Area Scan Modes and an extensive choice of statistical views.

It is specially suited to measuring large areas, long lines or when comprehensive reporting is required. For example when inspecting tunnels, retaining walls, concrete slab soffits, bridge slabs, reinforced walls and slabs.

Based on the new generation Profometer Touchscreen unit, the instrument offers real time control over the measurement procedure directly on site. The high resolution color display allows best possible measuring and analysis of the statistical data for an entire working day (battery lifetime > 8h).


Features:
Measuring wide areas over long distances
Automatically detects diagonal rebars
Zoom in to scale rebars according to your needs
Display with cover curve or signal strength curve
Visual assistance for speed and signal strength control
Settings directly accessible on the measurement screen
Graphical display of measured values and minimum cover set
Change settings before and after storage

PM-Link software for downloading saved data to a PC for analysis and export to third party applications
All-in-one Universal Probe including standard, long range and spot probe
Integrated Spot Probe for measurements in corners and where space is limited
Detachable Probe Cart for smooth measuring with on-board wireless path measuring system
